Home » Products » Axial Fan » AC Axial Fan » 150X172X51mm AC Axial Fan
AC Axial Fan

AC Axial Fan

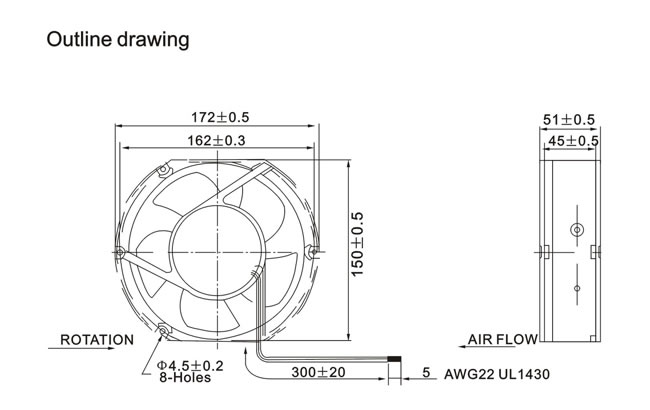

150X172X51mm AC Axial Fan

Technical Parameters of AC Axial Fan

Dimension (mm) Model Vol-
tage
(AC)
Freq-
uency
(Hz)
Current (AMP) Power (Watts) Speed (PRM) Air Flow (CFM)/
M3/min
Pres-
sure
(Inch/
H2O)
Noise (dBA) Weight (Gram)
150X172X51 PD150B-110 115 50 0.33 25 2500 180/5.10 0.38 49.6 870
PD150B-110 115 60 0.30 23 2700 195/5.52 0.52 53 870
PD150B-220 230 50 0.18 25 2500 180/5.10 0.38 49.6 870
PD150B-220 230 60 0.25 40 2800 201/5.70 0.54 55 870
PD150B-380 380 50 0.14 30 2500 180/5.10 0.38 49.6 870

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
