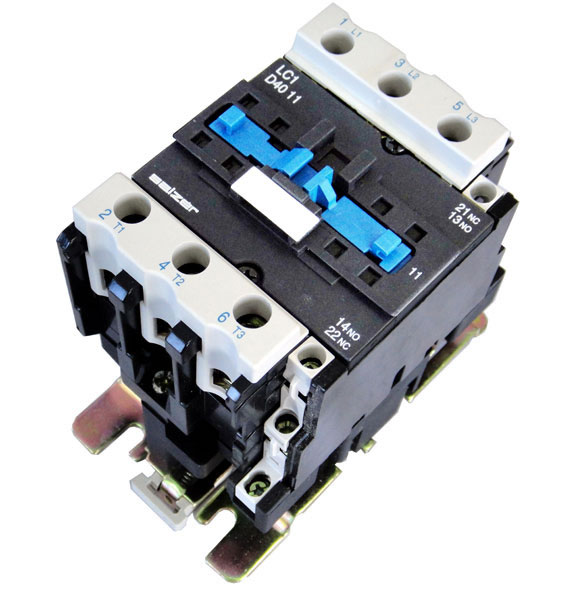

LC1-D Old Type

Application
LC1-D series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current 95A. For making, breaking, frequent starting & controlling the AC motor, combined with the auxiliary contact block, air delayer & machine-interlocking device etc., it is combined into the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 947, GB 14048.1 & G1314048.40.




Specifications

Type LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working current(A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
AC3 capacity of phase 3 squirrel-cage motor AC3(KW) 220V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
440V 4 5.5 9 11 15 22 30 37 45 45
660V 5.5 7.5 10 15 18.5 30 33 37 45 45
Rated heat current(A) 20 20 32 40 50 60 80 80 125 125
Number of the contact 3P+NO 3p+NC+NO
3P+NC
