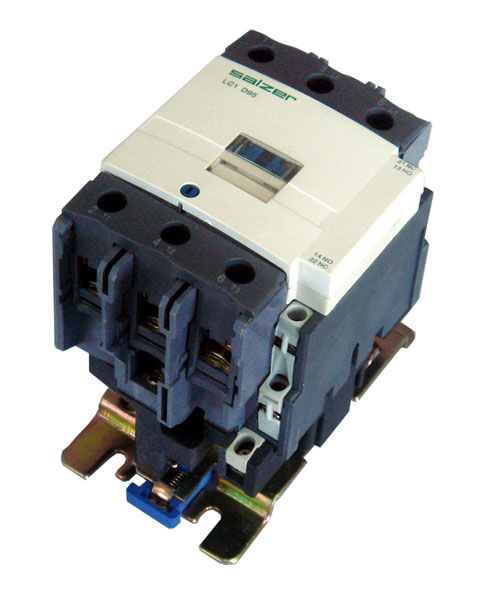

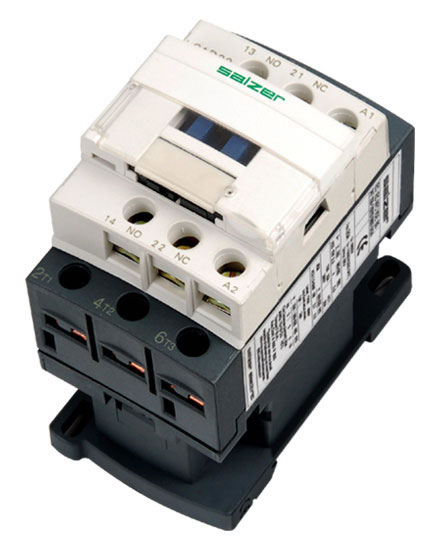

LC1-D New Type

Application
LC1-D new series AC contactor is suitable for use in the circuit up to the rated voltage 660VAC 50Hz or 60Hz rated current 620A. For making and breaking and frequent starting, controlling the AC motor combined with the auxiliary contact group, air delayer, machine-interlocking device etc. It is combined into the delay contactor, mechanical interlocking contactor, star-delta starter, with the thermal relay. It is combined into the electro-magnetic starter.
The Contactor is produced according to IEC 947, GB 14048.1 & G1314048.40.



Specifications

Type LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working current(A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
AC3 capacity of phase 3 squirrel-cage motor AC3(KW) 220V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
440V 4 5.5 9 11 15 22 30 37 45 45
660V 5.5 7.5 10 15 18.5 30 33 37 45 45
Rated heat current(A) 20 20 32 40 50 60 80 80 125 125
