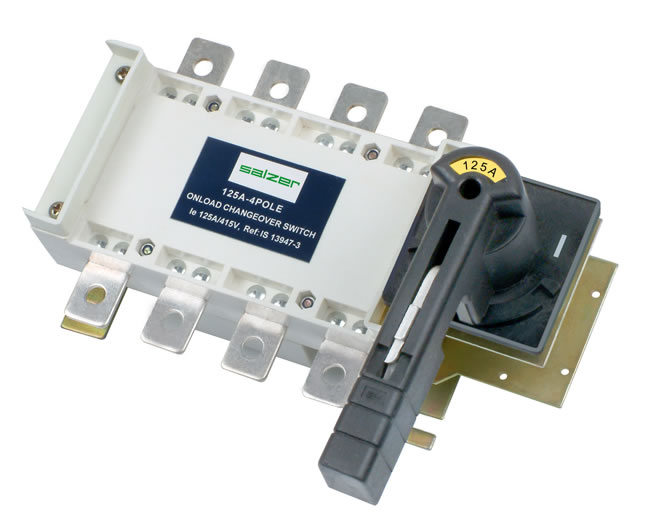

SPC Manual Load Isolation Switch

SPC Manual Load Isolation Switch

SP series load isolation switch is manufactured by our company with the up-to-date technique imported from Europe. This product achieved the international technical level in the late 1990s.
Due to its modularized design, the manual load isolation switch possesses flexible structure, and thus flexible, versatile combination. The shell is made using unsaturated polyester resin reinforced by fiberglass, resulting in high dielectric performance, protective capability and safe operation.
The operating mechanism is an elastic-accumulating accelerating mechanism for instant release, which makes instant on and off of the double break point contact. It has no relationship with the speed of operating handle, greatly increasing various electric properties and mechanical properties.
With good-looking appearance, small structure and various functions, the manual load isolation switch is a product of choice for customers around the world.

SPC-40A~630A side operated load isolation switch is mainly suitable for circuits of AC 50Hz, rated voltage to 690VAC, DC rated voltage up to 440VDC, rated current up to 630A. The switch is used for infrequent making and breaking circuit, or electric isolation.

General Information
The kind of side operated load isolation switch has 3 poles and 4 poles (3 poles + on and off neutral pole)
40A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A
Operation mode
Direct operation: the handle is installed directly in the middle of the switch.
Operation out side the board: the handle is installed outside the door of distributing board.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
