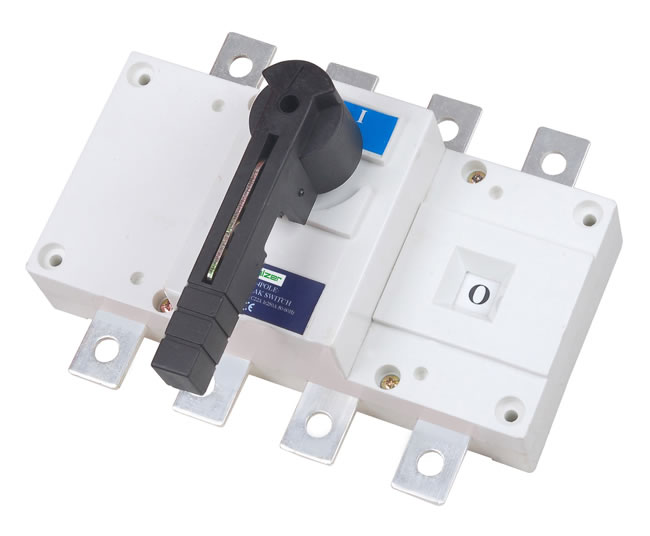

SPB Manual Load Isolation Switch

SPB Manual Load Isolation Switch

SP series load isolation switch is manufactured by our company with the up-to-date technique imported from Europe. This product achieved the international technical level in the late 1990s. Due to its modularized design, the load isolation switch possesses flexible structure, and thus flexible, versatile combination. With good-looking appearance, small structure and various functions, the manual load isolation switch is a product of choice for customers around the world.

SPB middle operated load isolation switch is mainly suitable for circuits of AC 50Hz, rated voltage to 690VAC, DC rated voltage up to 440VDC, rated current up to 3150A. The switch is used for infrequent making and breaking circuit, or electric isolation.

General Information
The kind of load isolation switch has 3 poles, 4 poles (3 poles + on and off neutral pole)
40A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A, 3150A
Operation mode
Direct operation: the handle is installed directly in the middle of the switch.
Operation outside the board: the handle is installed outside the door of distributing board.

Features of SPB Manual Load Isolation Switch
1. The operating mechanism is an acceleration mechanism featuring spring energy storage and instant release, which realizes the rapid making and breaking (13.8m/s), having no relationship with the speed of the operating handle, and increasing greatly the capability of extinguishing electric arc.
2. The shell made of unsaturated polyester resin reinforced by fiberglass provides great flame resistant performance, impact resistant performance, dielectric performance and safe operation.
3. Parallel double breakpoint contact possesses self-cleaning functions.
4. All the contact materials are copper alloy plated with silver, with two separation contact surfaces.
5. Large distance of insulation.
6. Be on "0" position, the switch handle can be locked with three locks at the same time and thus avoid error operation.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
