AC Axial Fan with Metal Impeller

280X280X80mm AC Axial Fan with Metal Impeller

General Information
1) Motor: capacitor-run external rotor induction motor
2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)
3) Insulation resistance: 100MΩ or over with a DC 500V Megger
4) Insulation grade: F; Protection grade: IP54
5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz
6) Allowable ambient temperature range: -20-+90°C(operating);-40-+90°C(storage)

Material
Casing: The casing of the AC axial fan is made of die-cast aluminium
Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)
Bearing: Ball bearing

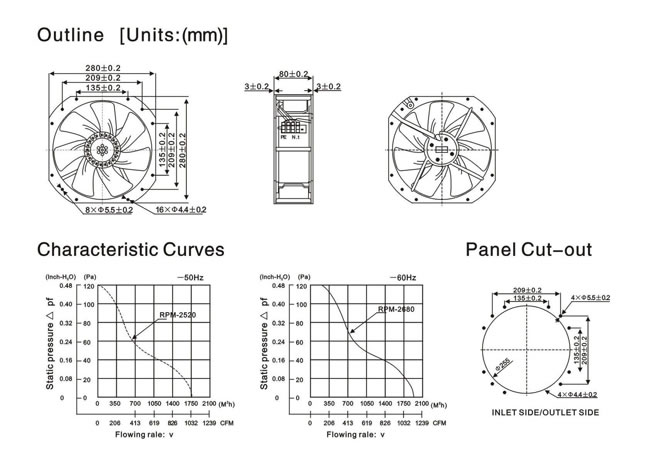

Technical Parameters of AC Axial Fan with Metal Impeller

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
