AC Axial Fan

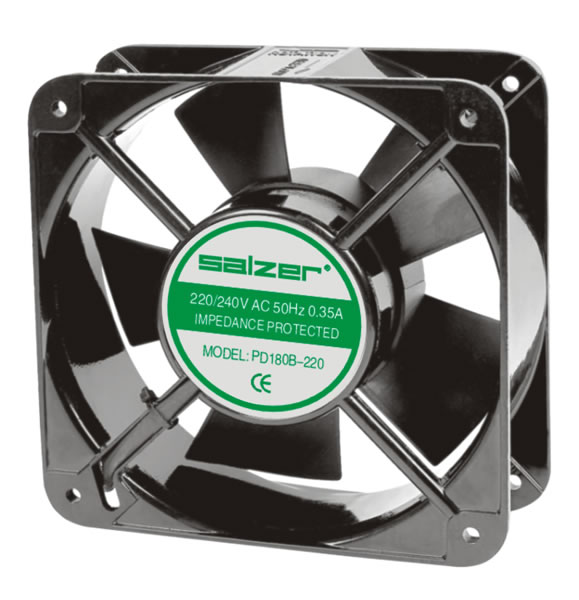

180x180x61mm AC Axial Fan

Technical Parameters of the AC Axial Fan

Dimension
(mm)		 Model Voltage
(AC)		 Frequ-
ency
(Hz)		 Current
(AMP)		 Power
(Watts)		 Speed
(RPM)		 Air Flow
(CFM)/M3
/min		 Pressure
(Inch/H2O)		 Noise
(dBA)		 Weight
(Gram)
180X180X61 PD180B-110 115 50 0.60 50 2500 255/7.22 0.60 58 1600
PD180B-220 230 50 0.35 55 2500 255/7.22 0.60 58 1600
PD180B-380 380 50 0.25 60 2500 255/7.22 0.60 58 1600
