AC Axial Fan

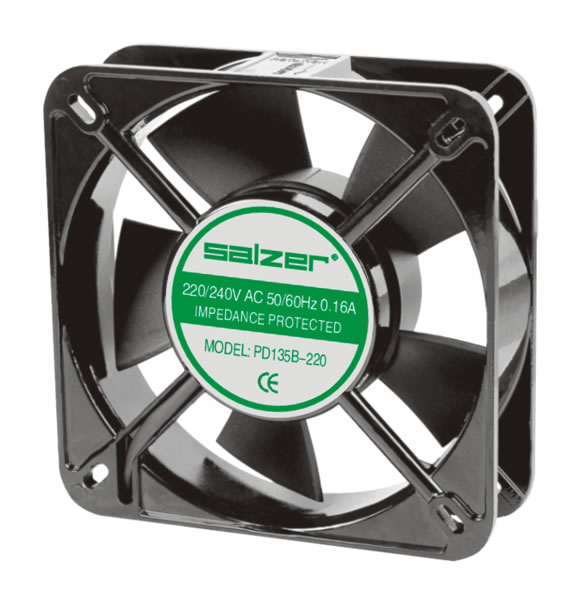

135x135x40mm AC Axial Fan

Technical Parameters of the AC Axial Fan

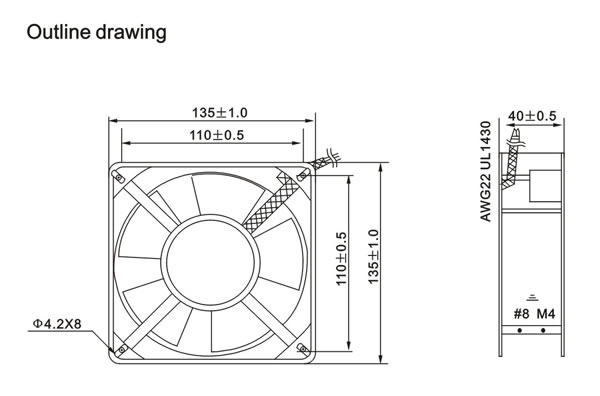

Dimension
(mm)		 Model Voltage
(AC)		 Frequ-
ency
(Hz)		 Current
(AMP)		 Power
(Watts)		 Speed
(RPM)		 Air Flow
(CFM)/M3
/min		 Pressure
(Inch/H2O)		 Noise
(dBA)		 Weight
(Gram)
135X135X40 PD135B-110 115 50 0.28 25 2350 92/2.60 0.29 44.3 570
PD135B-220 230 50 0.16 25 2350 92/2.60 0.29 44.3 570
PD135B-380 380 50 0.12 30 2350 92/2.60 0.29 44.3 570
