Home » Products » Axial Fan » AC Axial Fan » Φ230X65mm AC Axial Fan
AC Axial Fan

AC Axial Fan

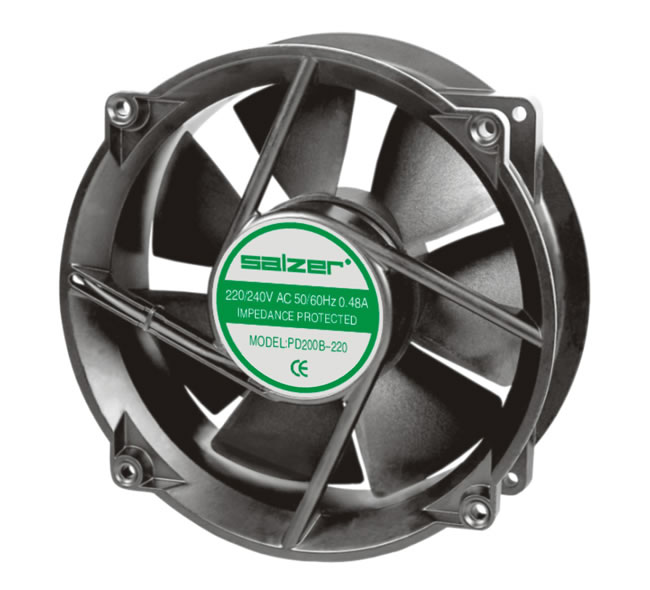

Φ230X65mm AC Axial Fan

Technical Parameters of AC Axial Fan

Dimension (mm) Model Vol-
tage
(AC)
Freq-
uency
(Hz)
Current (AMP) Power (Watts) Speed (PRM) Air Flow (CFM)/
M3/min
Pres-
sure (Inch/
H2O)
Noise (dBA) Weight (Gram)
Φ 230X65 PD200B-110 115 50 0.80 65 2300 254/7.19 0.58 56 1690
PD200B-220 230 50 0.48 70 2500 285/8.07 0.65 60 1690
PD200B-380 380 50 0.28 70 2500 285/8.07 0.65 60 1690

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
