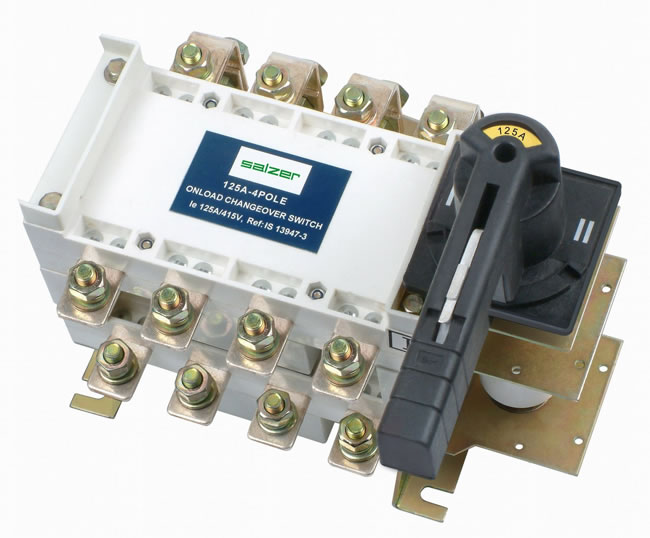

SPL Manual Changeover Switch

SPL Manual Changeover Switch

SPL-40A~3150A on load changeover switch is mainly suitable for circuits of AC 50Hz, rated voltage to 690VAC, DC rated voltage up to 440VDC, rated current up to 3150A.

General Information
The kind of onload changeover switch has 3 poles and 4 poles (3 poles + on and off neutral pole)
40A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A, 3150A.
Operation mode
Direct operation: the handle is installed directly in the middle of the switch.
Operation out side the board: the handle is installed outside the door of distributing board.
Extended shaft is used for the operation outside the board.
Two sets of auxiliary contacts can be assembled according to the demand.
Bridging bars can be provided to connect the inlet or outlet terminal of the switch.
Note: if the bridging bars connection is chosen, an explanation is needed to indicate the inlet or outlet connected with it.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
