AC Axial Fan

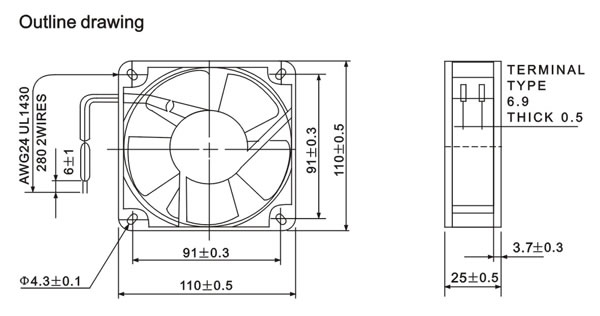

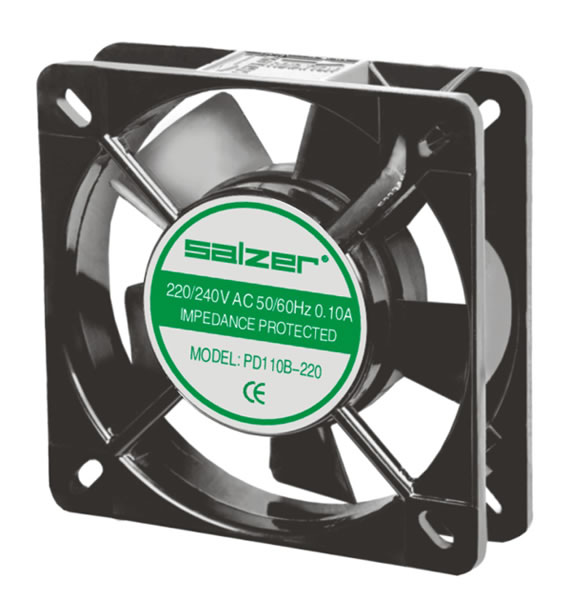

110x110x25mm AC Axial Fan

Technical Parameters of the AC Axial Fan

Dimension
(mm)		 Model Voltage
(AC)		 Frequ-ency
(Hz)		 Current
(AMP)		 Power
(Watts)		 Speed
(RPM)		 Air Flow
(CFM)/M3
/min		 Pressure
(Inch/H2O)		 Noise
(dBA)		 Weight
(Gram)
110X110X25 PD110S-110 115 50 0.16 17 2100 47/1.30 0.13 31 310
PD110S-110 115 60 0.15 16 2400 52/1.47 0.14 34 310
PD110S-220 230 50 0.10 18 2100 47/1.30 0.13 31 310
PD110S-220 230 60 0.09 17 2400 52/1.47 0.14 34 310
110X110X25 PD110B-110 115 50 0.16 17 2100 47/1.30 0.13 31 310
PD110B-110 115 60 0.15 16 2400 52/1.47 0.14 34 310
PD110B-220 230 50 0.10 18 2100 47/1.30 0.13 31 310
PD110S-220 230 60 0.09 17 2400 52/1.47 0.14 34 310
