Fan Dust Filter

Fan Dust Filter

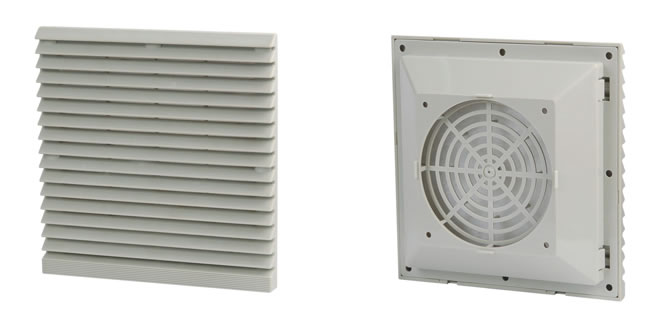

CT-205, CT-256 Fan Dust Filter
The ultra-thin filter is mainly used together with the axial fan. It can not only be used as an inlet of low-temperature clean air, but it can also be used as an outlet of blowing off the high-temperature loads. The precondition for using it is that the environmental temperature should be lower than that required for inner of cabinet. There is a filter pad of non-woven fiber, used to prevent dampness and dust.

Model Dimension (mm) Installation (mm) Effective wind rate Temperature range Material Protection degree For fan size (mm)
CT-205 204X204 176X176 105-120m3/h -10℃~+55℃ ABS resin IP54 120X120
CT-256 255X255 222X222 230-265m3/h -10℃~+55℃ ABS resin IP54 150X172

As a specialized fan dust filter manufacturer and supplier in China, Salzer also provides fan filter, cam switch, AC axial fan, LED indicator, push button switch, and high temperature wire, among others.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
