DC Axial Fan

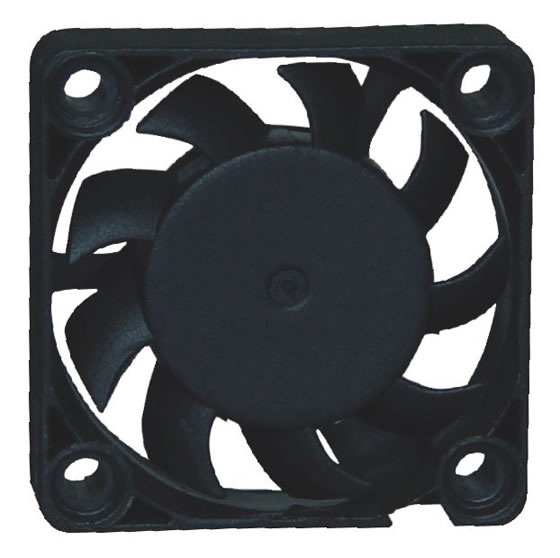

40x40x10mm DC Axial Fan

Technical Parameters of the DC Axial Fan

Dimension (mm) Model Voltage (VDC) Current (AMP) Power (Watts) Speed (RPM) Air Flow (CFM) Pressure (Inch/H2O) Noise (dBA) Weight (Gram)
40X40X10 PD40S-12L 12 0.07 0.84 5000 3.67 1.98 22.43 15
PD40S-12M 12 0.08 0.96 6000 4.65 2.73 27.23 15
PD40S-12H 12 0.09 1.08 7000 5.46 3.55 31.83 15
PD40S-24L 24 0.06 1.44 5000 3.67 1.98 22.43 15
PD40S-24M 24 0.07 1.68 6000 4.65 2.73 27.23 15
PD40S-24H 24 0.09 2.16 7000 5.46 3.55 31.83 15
