DC Axial Fan

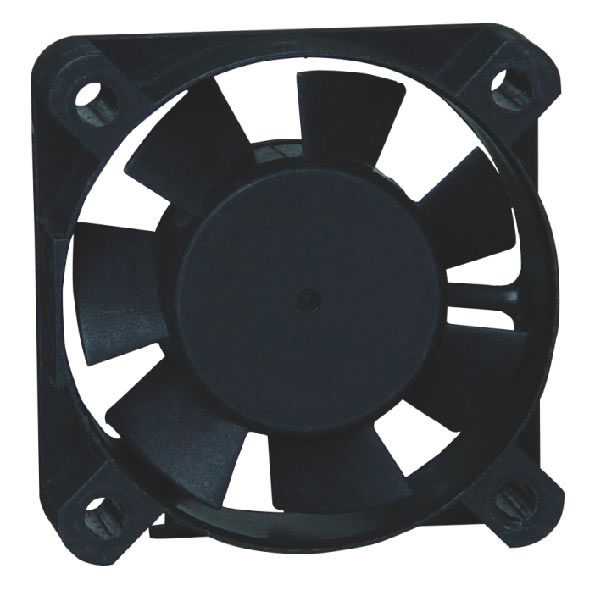

50x50x15mm DC Axial Fan

Technical Parameters of the DC Axial Fan

Dimension (mm) Model Voltage (VDC) Current (AMP) Power (Watts) Speed (RPM) Air Flow (CFM) Pressure (Inch/H2O) Noise (dBA) Weight (Gram)
50X50X15 PD50S-12L 12 0.09 1.08 4000 16.00 2.31 26.31 28
PD50S-12M 12 0.10 1.32 4500 17.13 2.87 27.82 28
PD50S-12H 12 0.14 1.68 5000 18.50 3.69 30.80 28
PD50S-24L 24 0.09 2.16 4000 16.00 2.31 26.31 28
PD50S-24M 24 0.11 2.64 4500 17.13 2.87 27.82 28
PD50S-24H 24 0.14 3.36 5000 18.50 3.69 30.80 28
