DC Axial Fan

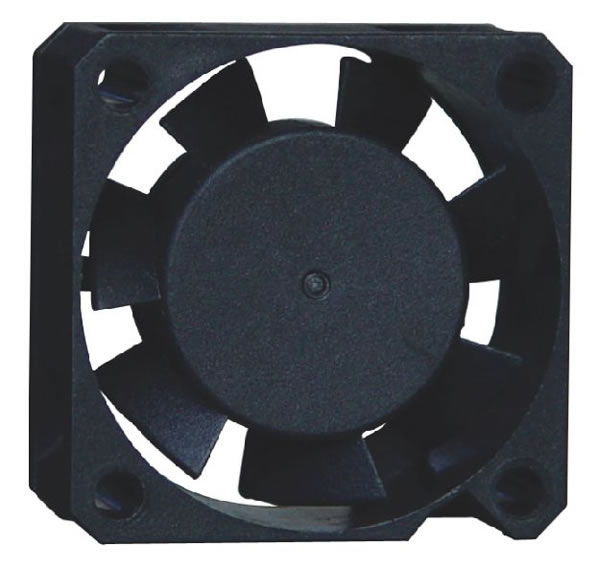

40x40x15mm DC Axial Fan
Technical Parameters of the DC Axial Fan
| Dimension (mm) |
Model |
Voltage (VDC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (Inch/H2O) |
Noise (dBA) |
Weight (Gram) |
| 40X40X15 |
PD40S-12L |
12 |
0.08 |
0.96 |
4000 |
6.60 |
3.90 |
30.3 |
20 |
| PD40S-12M |
12 |
0.10 |
1.20 |
7000 |
7.96 |
5.10 |
31.6 |
20 |
| PD40S-12H |
12 |
0.12 |
1.44 |
8000 |
9.10 |
6.95 |
39.5 |
20 |
| PD40S-24L |
24 |
0.08 |
1.92 |
6000 |
6.60 |
3.90 |
30.3 |
20 |
| PD40S-24M |
24 |
0.10 |
2.40 |
7000 |
7.96 |
5.10 |
31.6 |
20 |
| PD40S-24H |
24 |
0.12 |
2.88 |
8000 |
9.10 |
6.95 |
39.5 |
20 |
