DC Axial Fan

Home » Products » Axial Fan » DC Axial Fan » 40x40x20mm DC Axial Fan
DC Axial Fan

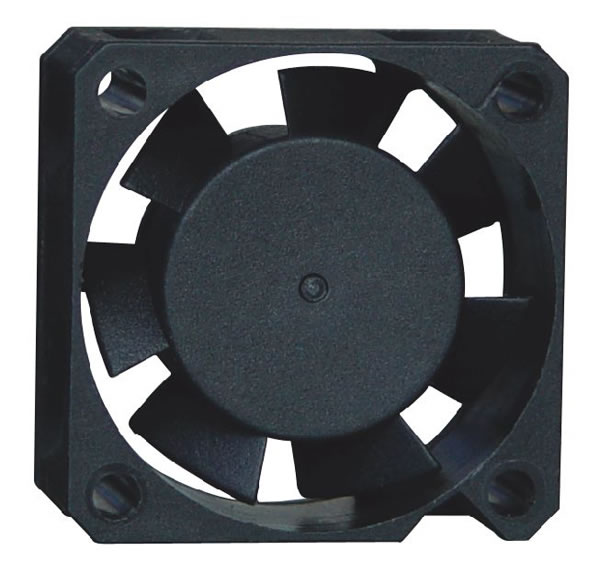

40x40x20mm DC Axial Fan

Technical Parameters of the DC Axial Fan

Dimension (mm) Model Voltage (VDC) Current (AMP) Power (Watts) Speed (RPM) Air Flow (CFM) Pressure (Inch/H2O) Noise (dBA) Weight (Gram)
40X40X20 PD40S-12L 12 0.06 0.72 5000 5.60 2.51 23.66 22
PD40S-12M 12 0.10 1.20 6000 6.93 3.88 28.86 22
PD40S-12H 12 0.12 1.44 7500 8.59 5.60 34.63 22
PD40S-24L 24 0.06 1.44 5000 5.60 2.51 23.66 22
PD40S-24M 24 0.07 1.68 6000 6.93 3.88 28.86 22
PD40S-24H 24 0.08 1.92 7500 8.59 5.60 34.63 22
