DC Axial Fan

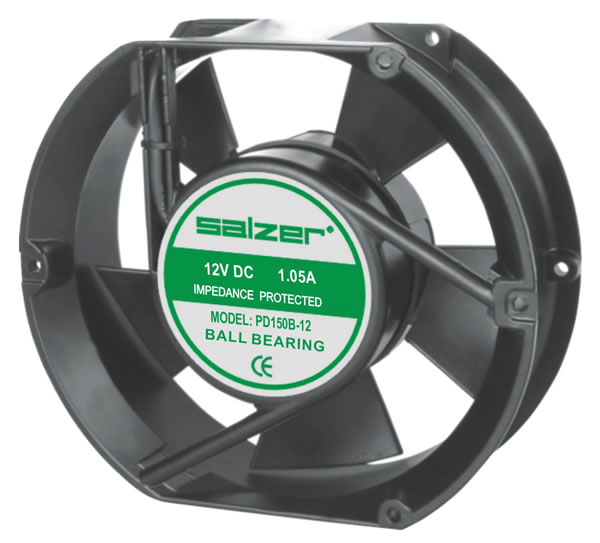

150x172x51mm DC Axial Fan

Frame: high quality aluminum alloy outside frame, anticorrosive and moisture proof structure
Impeller: UL94V-0 70% P.B.T.+30% F.R.P

Technical Parameters of the DC Axial Fan

Dimension (mm) Model Voltage (VDC) Current (AMP) Speed (RPM) Air Flow (CFM) Pressure (Inch/H2O) Noise (dBA) Weight (Gram)
150x172x51 PD150B-12 12 1.15 2600 250.0 30.70 60.0 960
PD150B-24 24 0.60 2700 260.0 30.70 54.0 960
PD150B-48 48 0.38 2800 270.0 30.70 62.0 960
