Digital Multimeter

Name: 96 Three Sets Digital AC Panel Voltmeter
Model: SA-D96 AC V (3sets)
Display: 4 digits LED display.
Accuracy: 0.5% ± 2 digits.
Auxiliary power: AC 110V ± 10% 50/60Hz or 220V ± 10% 50/60Hz.
Input signal: AC voltage 600V. It must be connected by a suitable potential transformer if the voltage is more than 600VAC.
Measuring range display: It is selectable from 1.00 to 9000.
Consumption: <3VA.
Operating environment: Temperature 0~40℃, humidity: ≤70%.
Withstand voltage surge: Over 2000V.
Outer size of the digital multimeter: 96x96mm

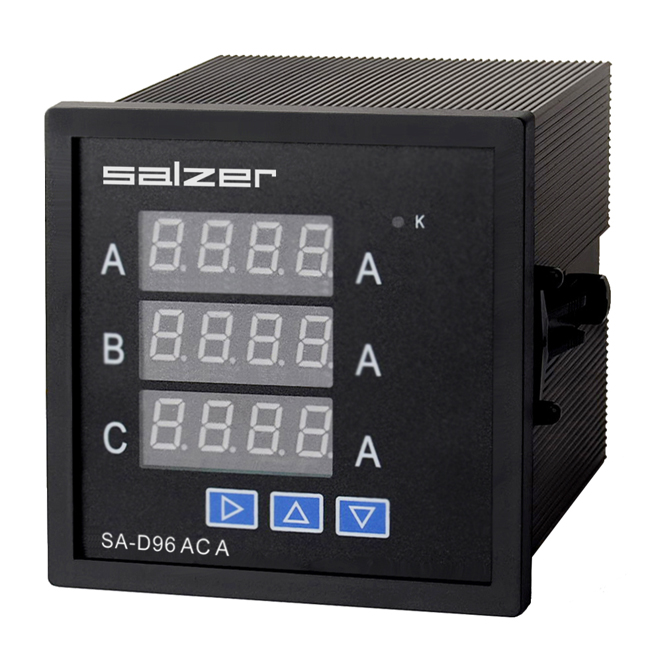

Name: 96 Three Sets Digital AC Panel Ammeter
Model: SA-D96 AC A (3sets)
Display: 4 digits LED display.
Accuracy: 0.5% ± 2 digits.
Auxiliary power: AC 110V ± 10% 50/60Hz or 220V ± 10% 50/60Hz.
Input signal: AC current 0-1A or 0-5A. It must be connected by suitable AC current transformers if the current is more than 5A.
Measuring range display: It is selectable from 1.00 to 9000.
Consumption: <3VA.
Operating environment: Temperature 0~40℃, humidity: ≤70%.
Withstand voltage surge: Over 2000V.
Outer size of the digital multimeter: 96x96mm

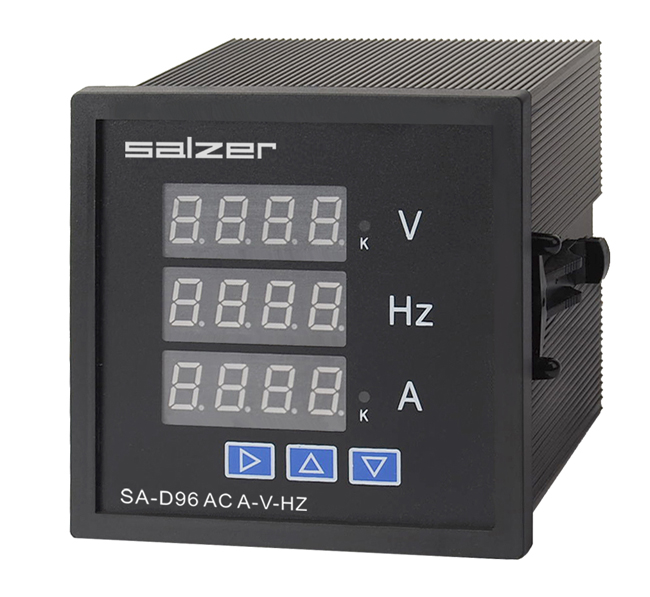

Name: 96 Three Sets Digital AC Panel Meter
Model: SA-D96 AC V-A-HZ
Display: 4 digits LED display.
Accuracy: 0.5% ± 2 digits.
Auxiliary power: AC 110V ± 10% 50/60Hz or 220V ± 10% 50/60Hz.
Input signal: AC voltage 600V. It must be connected by a suitable potential transformer if the voltage is more than 600VAC. AC current 0-1A or 0-5A. It must be connected by a suitable AC current transformer if the current more than 5A.
Frequency: 0-999.9Hz.
Measuring range display: It is selectable from 1.00 to 9000 for the AC voltage.
                                                It is selectable from 1.00 to 9000 for the AC current.
                                                Frequency 0-999.9Hz.
Power consumption: <3VA.
Operating environment: Temperature 0~40℃, humidity: ≤70%.
Withstand voltage surge: Over 2000V.
Outer size of the digital multimeter: 96x96mm

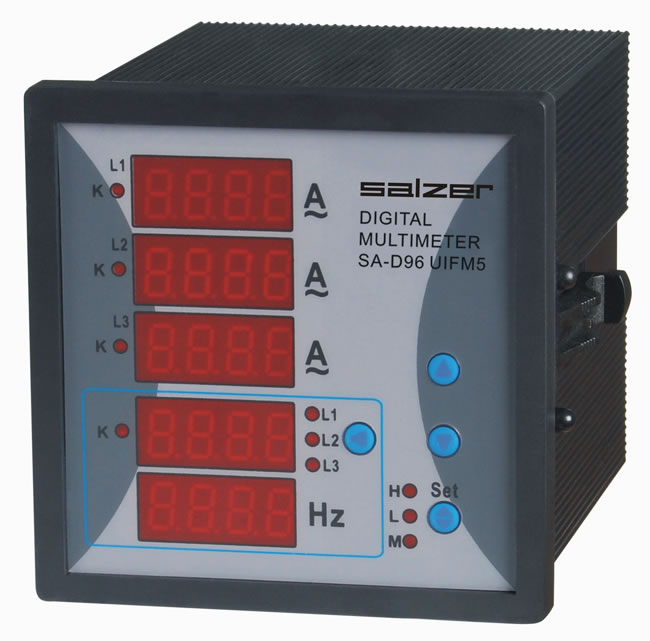

Model: SA-D96 UIFM5
SA-D96 UIFM5 use five-row four-digit nixie tube to display three-phase current, three-phase voltage and line voltage, frequency at one time. Voltage is manual circle display, others are fixed display.
Input voltage: L-N 100V, 300V L-L 180V, 500V
Input current: AC 1A, 5A
Input frequency: 46-65Hz
Measuring accuracy (voltage/current): + (0.5%FS+one digit)
Measuring frequency accuracy: + 0.1Hz
Power source: AC220V + 10%
Environment temperature: Operation: -10~50℃ Storage: -25~70℃
Humidity: ≤85%RH, free of wet and gas corrosion
Elevation: ≤3000m
Outer size of the digital multimeter: 96x96mm

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
