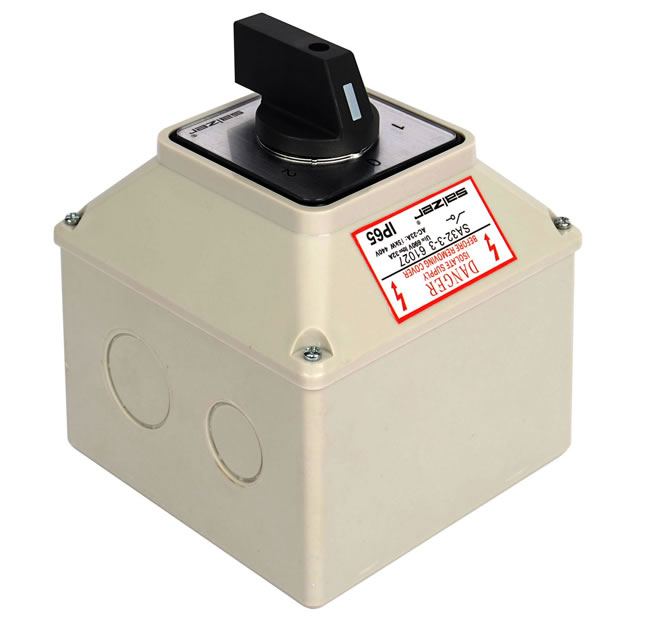

Salzer Cam Switch with Box IP65
General Information
1) Model: SA16-A-B, SA25-A-B, SA32-A-B, SA63-A-B
2) Rating Current: 16A, 25A, 32A, 63A
3) Voltage: 690VAC
4) BOX: IP65
5) The waterproof box can maximally hold 16A seven-stage switch, 25A five-stage switch.
It can maximally hold 32A four-stage switch, 63A two-stage switch.
6) Function: 0-1, OFF-ON, 1-0-2, A-O-M ...

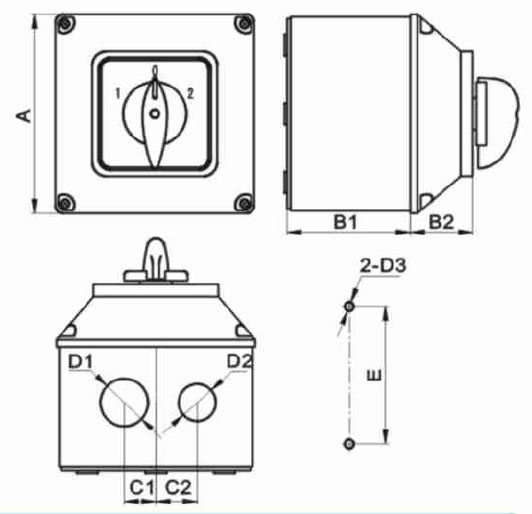

| Description | Dimensions(mm) | Installation(mm) | ||||||||
| A | B1 | B2 | C1 | C2 | D1 | D2 | D3 | E | Stages | |
| 16A | □113 | 70.5 | 35.5 | 18 | 23.5 | φ27 | φ21 | φ5 | 78 | 1-7 |
| 25A | □113 | 70.5 | 35.5 | 18 | 23.5 | φ27 | φ21 | φ5 | 78 | 1-5 |
| 32A | □113 | 70.5 | 35.5 | 18 | 23.5 | φ27 | φ21 | φ5 | 78 | 1-4 |
| 63A | □113 | 70.5 | 35.5 | 18 | 23.5 | φ27 | φ21 | φ5 | 78 | 1-2 |
For more information, please don’t hesitate to contact us.
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
