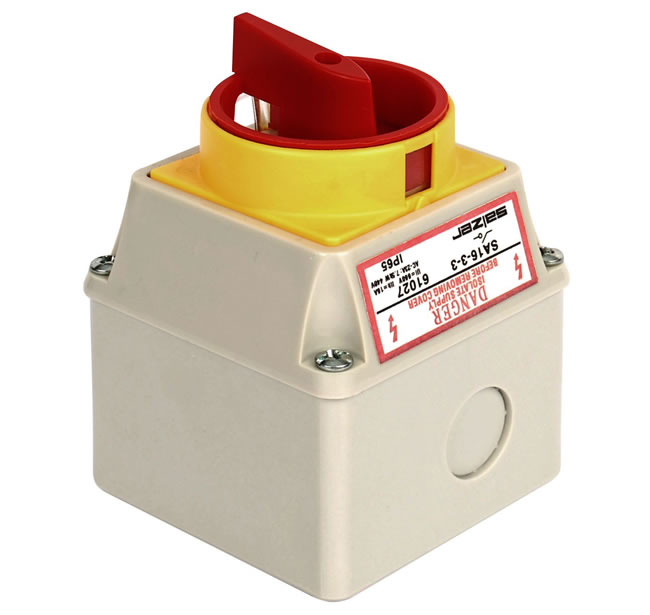

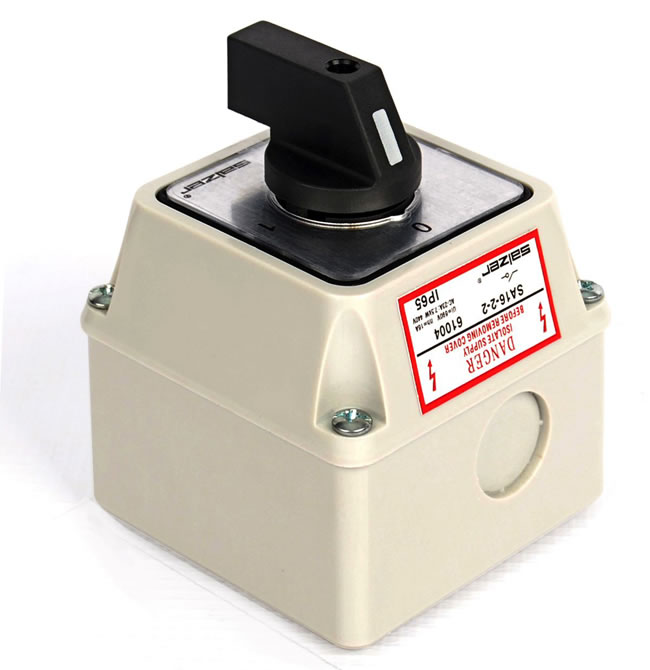

Salzer Cam Switch with Box IP65
General Information
1) Model: SA16-A-B, SA25-A-B
2) Rating Current: 16A, 25A
3) Voltage: 690VAC
4) BOX: IP65
5) The waterproof box can maximally hold 16A three-stage switch, 25A two-stage switch
6) Function: 1-0, OFF-ON, 1-0-2, A-O-M ...

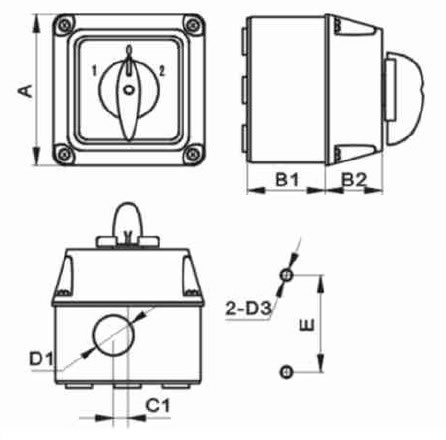

Description | Dimensions(mm) | Installation(mm) | ||||||||
A | B1 | B2 | C1 | C2 | D1 | D2 | D3 | E | Stages | |
16A | □68.5 | 35.5 | 25.5 | 6.5 | φ18 | φ5 | 44 | 1-2 | ||
16A | □68.5 | 45 | 25.5 | 6.5 | φ18 | φ5 | 44 | 1-3 | ||
25A | □68.5 | 35.5 | 25.5 | 6.5 | φ18 | φ5 | 44 | 1 | ||
25A | □68.5 | 45 | 25.5 | 6.5 | φ18 | φ5 | 44 | 1-2 |
Please free to contact us if you need other specifications.
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
