Analog Voltmeter

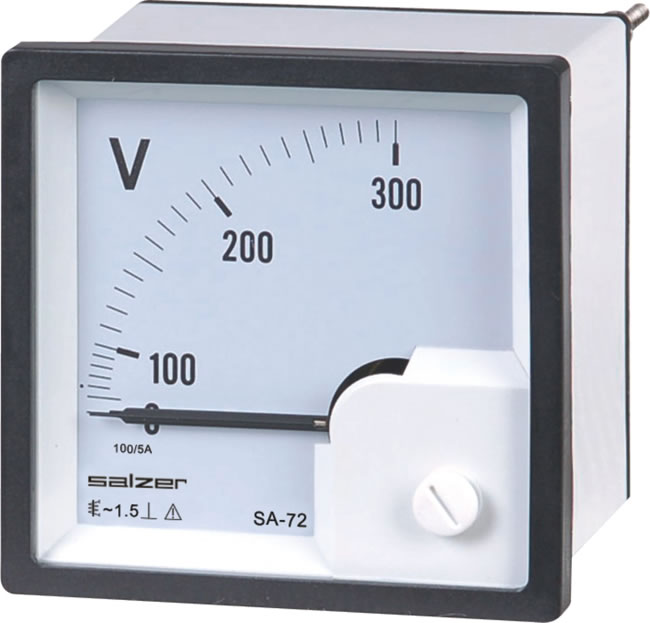

Analog AC Voltmeter Panel Meter

Model: 90 DEG: SA-96V, SA-72V, SA-48V.
Feature: Without cover on the moving needle(F), without cover on the moving needle(C)
Accuracy: Class 1.5
Measuring range: 0-600VAC
Specification: 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 450V, 500V, 600V.
For 450V-450KV, analog voltmeters can use potential transformer with secondary voltage 100V.
Heat Resistance: Case of the analog voltmeter is made using non-combustible plastic material.
Fastening: by means of nuts, side by side, absolutely safe.
Operation Temperature: 0-40℃
Dimensions: 96X96MM, 72X72MM, 48X48MM
Mounting Depth: 96: Max 43mm, 72: Max 113mm

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
