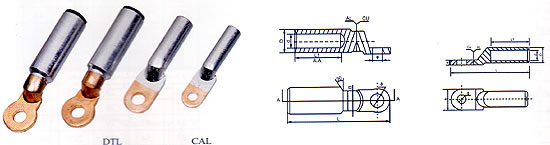

| DTL series of copper-aluminum wiring terminals are suitable
for transition connection of the circular aluminium wires,power
supply cables in the distribution equipment and copper terminals
of the electrical equipment.The material of aluminium and copper
is that of L3 and T2 respctively.The technology of friction
welding is wonderfully adopted. Therefore they have distinguishing
features of strong weld intensity,good nature in electrification,resistant
galvanic corrosion and long service life. |
 |
| Type |
Dimensions(mm) |
| f |
D |
d |
L |
L1 |
B |
| DTL-16 |
6.5 |
10 |
5.5 |
70 |
32 |
16 |
| DTL-25 |
8.5 |
12 |
7 |
75 |
34 |
18 |
| DTL-35 |
8.5 |
14 |
8.5 |
85 |
38 |
20.5 |
| DTL-50 |
10.5 |
16 |
9.5 |
90 |
40 |
23 |
| DTL-70 |
12.5 |
18 |
11.5 |
100 |
42 |
26 |
| DTL-95 |
12.5 |
20 |
13.5 |
110 |
48 |
28 |
| DTL-120 |
14.5 |
22 |
15 |
120 |
53 |
30 |
| DTL-150 |
14.5 |
24 |
16.5 |
125 |
55 |
34 |
| DTL-185 |
17 |
27 |
18.5 |
135 |
57 |
37 |
| DTL-240 |
17 |
30 |
21 |
140 |
60 |
40 |
| DTL-300 |
21 |
34 |
23.5 |
165 |
65 |
50 |
| DTL-400 |
21 |
38 |
27 |
170 |
70 |
50 |
| DTL-500 |
21 |
47 |
29 |
225 |
75 |
60 |
| DTL-600 |
- |
54 |
35 |
245 |
80 |
80 |
| DTL-800 |
- |
60 |
38 |
270 |
90 |
100 |
|
|
 |
|
