APPLICATION:

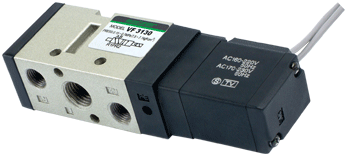

This solenoid valve has such advantages as low dissipation power, good abrasive resistance, strong resistance to dust, flexible movement and long service life. It is suitable for integrated installation. |
| MODEL |
VF3130 |
| Valve type |
5 port 2 position |
| Orifice size |
17.1mm2(CV=0.95) |
| Port Size |
IN=OUT=1/4" |
| Pressure range |
1.5-9.0bar
|
| Temperature |
0-50C(23 - 140F) |
| Voltage range |
-15% - +10% |
| Power consumption |
AC: 5.6VA/3.4VA
DC: 1.8W/2W |
| Insulation |
B class |
| Connector |
G and D |
| Max frequency |
5 cycle/sec |
| Weight |
210g |
|
|
 |
|
