APPLICATION:

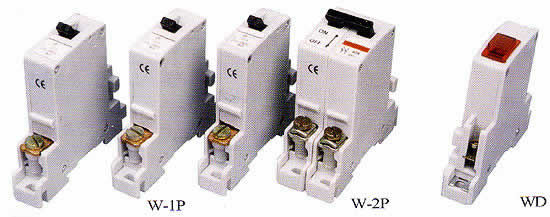

W40 series Mini Circuit Breaker have small size,light weight,novel
structure and excellent performance.They can be mounted in the
illuminating distribution box and used in houses block of flats,high
buildings,squares, airports,railway stations,plants&enterprises
etc,within the AC 50/60Hz,rated voltage of one pole up to 240V,two
and three poles up to 415V for protection of overload and short
circuit.It can also be used in illumination system,its breaking
capacity is 3KA. Its indicator can be used as circuit indication
in illumination and industry system. |
SPECIFICATIONS:
| Rated current |
1,23,6,10,16,20
25,32,40A |
| Rated voltage |
240/415V AC |
| Breaking capacity |
3000A |
| Mechanical life |
10000 times |
|
