APPLICATION:

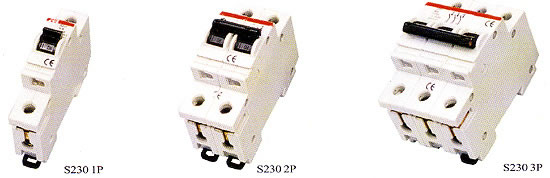

S230 series Mini Circuit Breaker are mainly suitable for overload
and short circuit protection within the circuit of AC 50Hz/60Hz,rated
voltage of single pole up to 240V,two or three poles up to 415V
and rated current up to 60A. It can also be used for infrequent
switch over of the circuit and illumination under normal conditions.
The newly developed S230 breakers,conforming to the standards
of IEC898-GB10963-89 B.S3871,can protect the connectors of different
parts of all. |
SPECIFICATION:
| Rated capacity of short circuit breaking |
3000A |
| Rated current of frame |
60A |
| Rated current of trip |
2,4,6,10,16
20,25,32,40
50,60A |
| No.of pole |
1,2,3 |
| Mechanical&electric life |
6000times |
|
