APPLICATION:

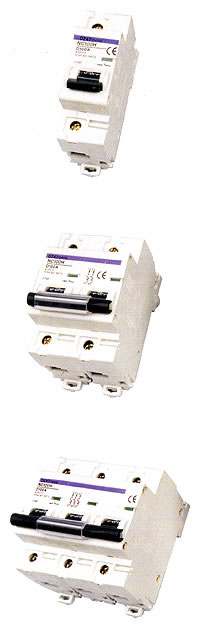

(NC100H)high breaking capacity circuit breaker is used for
AC 50Hz(60Hz),single pole 240V,2,3,4 poles 415V,for protecting
the circuit that overload and short circuit may take place.It
can be used in lighting and electric motor distribution system.
Meanwhile it is applicable to an unfrequent switch over the
electric apparatus and lighting circuit under normal condition. |
TECHNICAL SPECIFICATION:
| Rated current:63,80,100A |
| Rated voltage:240V/415V AC |
| Mechanical and Electrical life:20000 times(C.O) |
| No.of pole:1P,2P,3P,4P |
| Weight(g) |
1P |
2P |
3P |
4P |
| 180 |
360 |
540 |
720 |
| Breaking capacity:IEC60947-2 10KA |
|
|
 |
|
