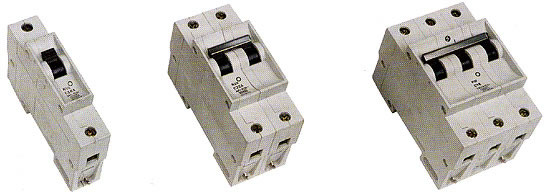

APPLICATION:
K series Mini Circuit Breaker are mainly suitable for overload
and short circuit protection within the circuit of AC50/60Hz,rated
voltage of single pole up to 240V,two or three poles up to 415V,They
are especially used for illumination and distribution in industry
and commerce.It has pleasant out look,light weight,reliable
performance and high breaking capacity.The material of its frame
and parts adopts plastic of high resistance and shock proof
for long service.It can also be used for infrequent switchover
of the circuit under normal conditions. |
SPECIFICATIONS:
| Rated frequency |
50/60Hz |
| Rated voltage |
240/415V |
| Rated breaking capacity |
3000A |
| Rated trip current |
2,4,6,10,16,20,
25,32,40,50,63A |
|
