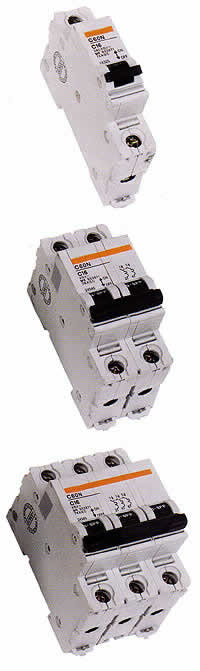

APPLICATION:
The products of C60N belong to the advanced level of the nineties
in the international instead of the older generation of DZ47(C45N).They
have protective function as shortage as overload,and are used
in lighting distribution system in industry,commerce and dwelling,and
protection fractional electric motors.And they also have many
merits of high protective grade(up to IP 20),high breaking capacity,reliable
sensitive action,convenient,multipole assembing,long life etc.
They are mainly adapted to the circuit of AC 50HZ,230V in single
pole,400V in double,three,four poles for protecting overload
and short circuit,Meanwhile,they are also used in turning on
or off the electric apparatus and lighting circuit under the
normal condition. |
TECHNICAL SPECIFICATION:
| No.of pole:1P,2P,3P,4P |
| Rated Voltage:230V/400V |
| Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A |
| Mechanical and Electrical life:(0-C)not less than 6000
operations |
| Protective grade:IP20 |
| Breaking capacity:(IEC60898) |
|

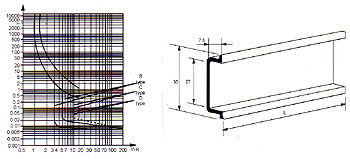

CHARACTERISTIC CURVE(BS/IEC)

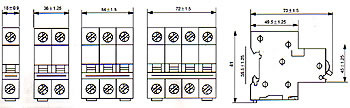

DIMENSIONS
|
|
 |
|
