APPLICATION:

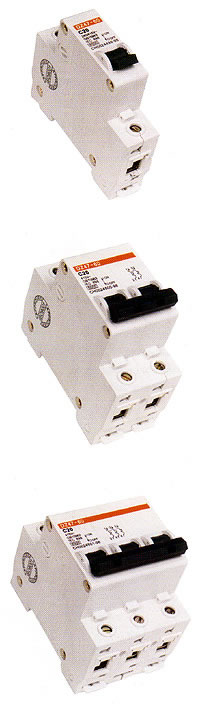

C45N series circuit breaker is used in lighting distribution
system ormotor distribution system for protecting overload and
short-circuit in the system. The product is novel in structure,light
in weight, reliable and excellent in performance.It has hight
breaking capacity,can trip quickly and it`s installation uses
with guide,it`s case and body are adopted with high fire-resistartant
and shock proof plastics.The product with long life,is mainly
used in AC 50HZ/60HZ single-pole 240V ortwo,three,four-pole
415V circuit for overload and short-circuit protection as well
as for unfrequent on-and-off switching electric equipment and
lighting circuit in normal case.This product conform to GB 10963,IEC60898,BS3871. |

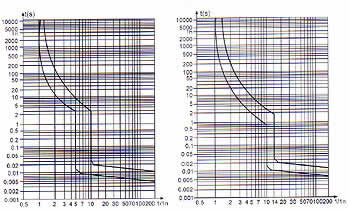

PERFORMANCE:
|
SPECIFICATIONS:
| Rated temperature 40℃ |
| Rated voltage 240V/415V AC |
Rated current(C):1,3,5,6,10,15,16,20,25,32,40,50,60,63A
(D):1,3,5,6,10,15,16,20,25,32,40A |
| Electric endurance not lower than 6000 times |
| Mechanical endurance lower than 2000 times |
| Tropical test:2 kinds |
| Weight(g) |
1P |
2P |
3P |
4P |
| 102 |
208 |
308 |
408 |
|
|
 |
|
