APPLICATION:

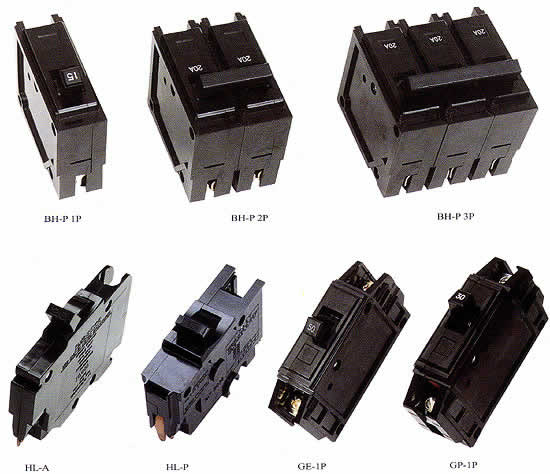

BH BH-P moulded case circuit breaker applies to industrial,commercial,lighting
and electric machine distribution system with AC 415V,50-60Hz,rated
working current up to 60A to be used to protect overload and
short circuit.Main technical parameter,see the form. |
 |
| Pole Number |
1,2,3 |
| Rated current(A) |
6,10,15,20,30,40,50,60 |
| Rated Voltage(V) |
240/415,415(3P) |
| Maximum Making and Breaking Capacity |
3KA |
| Electric Life(Times) |
6000 |
| Mechanical Life(Times) |
4000 |
|
|
 |
|
