APPLICATION:

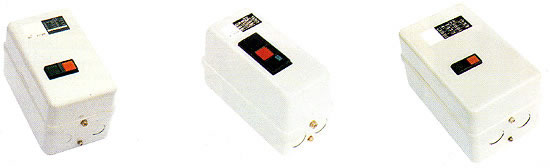

MS-K series magnetic starters are used in a circuit of voltage
up to 660V,50-60Hz to start,stop and convert motors,and protect
motors from overload phase failure. |
SPECIFICATIONS:
| Type |
Rated current AC3 (A) |
Rated power (KW) |
Aux contacts |
Setting current (A) |
| 220V |
380V |
220V |
380V |
550V |
660V |
- |
- |
| MS-K10PM(KP/TP) |
11 |
9 |
2.5 |
4 |
4 |
4 |
1 |
- |
0.24A 0.35A
0.5A 0.7A
0.9A 1.3A
1.7A 2.1A
2.5A 3.6A
5A 6.6A 9A |
| MS-K11PM(KP/TP) |
13 |
12 |
3.5 |
5.5 |
5.5 |
5.5 |
1 |
- |
| MS-K18PM(KP/TP) |
18 |
16 |
4.5 |
7.5 |
7.5 |
7.5 |
1 |
- |
| MS-K20PM(KP) |
22 |
22 |
5.5 |
11 |
11 |
7.5 |
1 |
- |
0.24A 0.35A
0.5A 0.7A
0.9A 1.3A
1.7A 2.1A
2.5A 3.6A
5A 6.6A 9A
11A 15A |
| MS-K21PM(KP) |
22 |
22 |
5.5 |
11 |
11 |
7.5 |
1 |
2 |
| MS-K25PM(KP) |
30 |
30 |
7.5 |
15 |
15 |
11 |
1 |
2 |
| MS-K35PM(KP) |
40 |
40 |
11 |
18.5 |
18.5 |
15 |
1 |
2 |
| MS-K50PM(KP) |
55 |
50 |
15 |
22 |
22 |
22 |
1 |
2 |
15A 22A 29A
35A 42A 54A |
| MS-K65PM(KP) |
65 |
62 |
18.5 |
30 |
30 |
30 |
1 |
2 |
| MS-K80PM(KP) |
85 |
85 |
22 |
45 |
45 |
45 |
1 |
2 |
| MS-K95PM(KP) |
105 |
105 |
30 |
55 |
55 |
55 |
1 |
2 |
|
 |
|
 |
|
