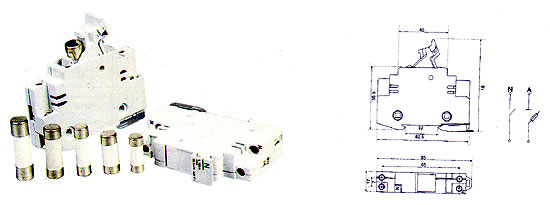

Designed with two pairs of connecting terminals,one for live
and the other for neutral.
Rated insulating voltage:660V AC,50Hz
Rated working voltage:250V and 415V AC,50Hz
Rated current:32A
Equipped with static contacts and holding heads of different
sizes,the product is able to hold five different sizes of cylindrical
fuse links:8.5X23,8.5X31.5,10.3X25.5,10.3X31.5, 10.3X38.
Applicable for protction against overload or short-circuit of
single phase equipment or for electrical isolation.
Conforrning to IEC269,IEC947-3,GB13539 and GB14048.3.
Standard rail installation.
High reliability,compact in size,excellent appearance,convenient
while using result in wide application in industry,agriculture,electrics,telecommunication,transportation
and construction,etc. |
|
 |
|
