APPLICATION:

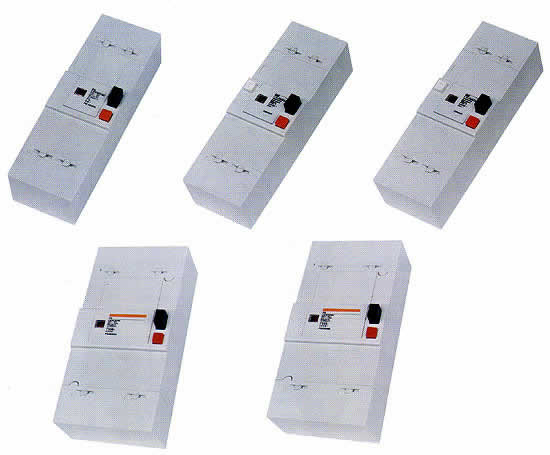

PG230,PG450 breakerare suitable in AC 50Hz,250/440V circuit
with overload and earth leakage protection.The rated current
is adjustable from 10A up to 60A. User can select suitable current
to better protection against overload and short circuit.The
products comply with NFC61450. |
TECHNICAL SPECIFICATION:
| Type |
PG230 |
PG450 |
| Poles |
2P |
4P |
| Rated voltage(V) |
250V/440V |
| Rated current(A) |
10,15,20,25,30,45,50,60A Adjustable |
| Leakage motion current(mA) |
300mA,500mA |
300mA,500mA |
| Leakage dead current(mA) |
150mA,250mA |
150mA,250mA |
| Accord with standard |
NFC61450 |
|
 |
|
 |
|
