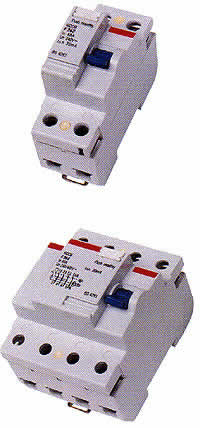

APPLICATION:
The item is in accordance with standards of VDE 0664,IEC 1008
and BS4293 etc.,applying to the circuit of AC50/60Hz,240V single
phase,415V three phases and below it for industrial and mining
enterprise,building trade,commerce and family.To mainly prevent
electric fire and personal casualty accident caused by personal
electric shock or leakage of electrified wire netting, this
RCCB is a current-operated,fast leakage protector of pure electrified
wire netting,this RCCB is a current-operated,fast leakage protector
of pure electromagnetic type,which can break off fault circuit
rapidly in order to avoid occurrence of accident.The item is
precise in structure,less elements,with out auxiliary power
and high working reliability. The functiong of the switch won`t
be influenced by ambient temperature and lighting.The mutual
inductor of the item is used to test vector differential value
of passing current,and produces are levant output power and
add if differential value of protected circuit of personal electric
shock is up to or over leakage operating current,the tripper
will act and cut off,so that the item will take effect of protection. |
TECHNICAL SPECIFICATION:
| Type |
Rated current |
Leakage acting current |
Range of break-off |
Rated voltage |
| F362 |
16A 25A
32A 40A 63A |
10mA 30mA
100mA 300mA |
0.5～1.0XI△n |
240V(220V) |
| F364 |
25A 32A
40A 63A |
30mA 100mA 300mA 500mA |
0.5～1.0XI△n |
240V/415V (220V/380V) |
|
|
 |
|
