APPLICATION:
Apply to as 50HZ,voltage 220V,rated current 20A,single phase
current to pretect ot personal safely and also protect tine
of equipment against overload.If the insutation of equipment
breaker, engender current,it also can prevent the fire.
When contact RL1 fuses,it can protect short circuit.
STRUCTURE AND FEATURE:
It is current trip type.electric type leakage protect electric
equipment,mainly conclude current mutual inductance electric
amplifier parts leakage trip test device.
|
 |
 |
 |
SPECIFIC PROPERTY:
leakage switch mainly technology
| |

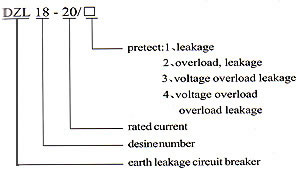

DZL18-20/1 |
DZL18-20/2 |
DZL18-20/3 |
DZL18-20/4 |
| Un(V) |
AC220 |
| Inm(A) |
20 |
| Pole |
2 |
| In(A) |
- |
10,16,20 |
- |
10,16,20 |
| I△n(mA) |
10,15,30 |
| I△no(mA) |
6,7.5,15 |
| I△m、Im、(A) |
500 |
| Weigh(kg) |
0.2 |
|
|
 |
|
