APPLICATION:

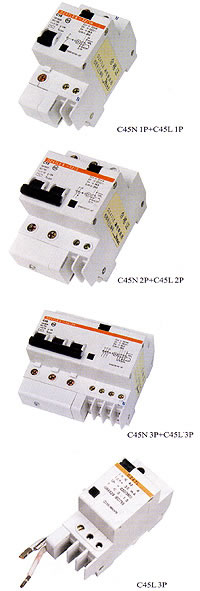

C45L DPNLE earth leakage circuit breaker is used for the protection
against electrical leakage in the circuit of 50Hz or 60Hz,rated
voltage single-phase 240V,3phase 415V,rated current up to 60A.When
somebody gets an electric shock or the residual current of the
circuit exceeds the fixed value,the ELCB can cut off the power
within the time of 0.1s auto-matically protecting the personal
safety and preventing the equipement from the fault resulted
from the residual current.With this function,the ELCB can protect
the circuit against overload and short circuit or can be used
for the unfrequent switch over of the circuit under normal conditions.It
conforms to IEC60898 & IEC60755. |
TECHNICAL SPECIFICATION:
| Rated Voltage (V) |
Pole No |
Rated current(A) |
Leakage action current (mA) |
Leakage dead current (mA) |
Leakage action time (s) |
| 220V |
1P |
1～10
15～30 |
30 |
15 |
<0.1 |
| 380V |
2,3,4P |
40～60 |
100 |
50 |
a.TH3.5-7.5 rail is used for the product installation.
b.Outline and installation dimensions(see the figure and the
table) |
WIRING DIAGRAM:
|
|
 |
|
