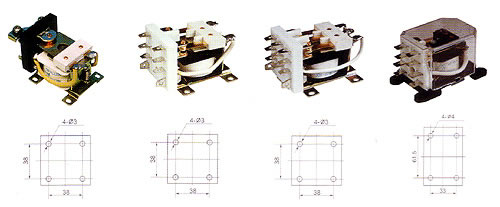

Model
JQX-40 1Z
JQZ-40 2Z
JQX-40F 3Z
JQX-52F
Contact Capacity
AC250V 20 80A
AC250V 10 40A
AC250V 30A 40A
Coil Power
DC≤3.4W AC≤6.5VA
DC≤2.7W AC≤5.5VA
DC≤2.8W AC≤4.2VA
Contact Resistance
≤50mΩ
Insutation Resistance
≤1000MΩ
Coil Voltage
DC6V 220V AC6V 380V 50/60Hz
Operating Temperature
-40℃ +55℃
Service Life
Mechanical
10
7
Electrical
10
5
Terminal
Outlet solder
External Dimension
68×45×42mm
75×42.5×42mm

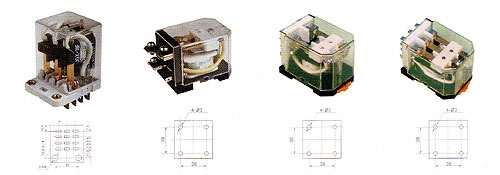

Model
JQX-38F
JQX-58F 1Z
JQX-58F 2Z
JQX-58F 3Z
Contact Capacity
AC250V 30A 40A
AC250V 20 80A
AC250V 10 40A
Coil Power
DC≤2.5W AC≤4.5VA
DC≤3.4W AC≤6.5VA
DC≤2.7W AC≤5.5VA
Contact Resistance
≤50mΩ
Insutation Resistance
1000MΩ
Coil Voltage
DC6V 220V AC6V 380V 50/60Hz
Operating Temperature
-40℃ +55℃
Socket fitted with
PTF38A
Service Life
Mechanical
10
7
Electrical
10
5
Terminal
Outlet solder Fixing type Fixing type
Fixing type Fixing type
Like product
意大利 ms 845,846
External Dimension
57×42×50mm
68×45×42mm
