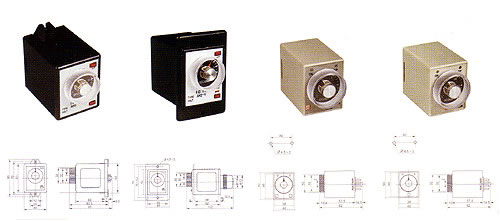

| Model |
H3CR(H3CR-A8) |
H3BA |
H3BA-8(H) |
ST4P |
 |
| Contact |
Time 2PDT |
| Operation |
Time-Limit Operation/Self-Resetting/Exterknal
Resetting |
Time-Limit Operation Self-Resetting |
Time-Limit Operation/Self-Resetting/Exterknal
Resetting |
| Time range(sec,min,hrs,10h) |
1.2,3,12,30 |
0.05～0.5,0.1,1,5,10 |
| Coil Voltage |
AC24V～240V DC12V～125V 50/60Hz |
| Operating Temperature |
-30℃～+50℃ |
| Socket fitted with |
P2C-08 US-08 |
PF113A |
P2C-08 US-08 |
P2C-08 US-08 PF083A |
| Serivce Life |
Mechanical |
107 |
| Electeical |
105 |
| Terminal |
Outlet solder |
|

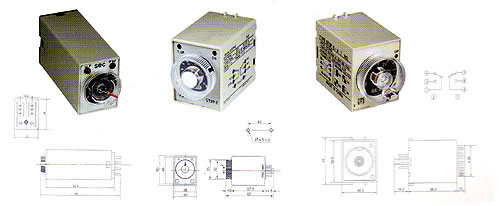

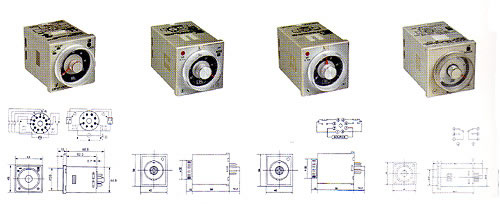

| Model |
H3Y-2,4(ST6P) |
ST2P |
ST3P |
 |
| Contact |
Time 2PDT Time 4PDT |
On-delay tith inst contact |
A.Timed 2PDT C.Timed SPDT Inst.SPDT R.Timed 2PDT
F.Timed SPDT Y.Timed ⊥ - △Inst.IND |
| Operation |
Time-Limit Operation/ Self-Resetting |
On-delay with inst;contact |
On-delay On-delay with inst contact off-delay
off-delay;exter malcontact signal⊥ -△ Ondelay |
| Timerange |
(sec,min.hrs,10h)0.5s～3h |
(sec,min.hrs,10h)1s～24h |
A:0.05-0.5s/5s/30s/3min B:0.1-1s/10s/60s/6min
C:0.5-5s/50s/5min/30min D:1-10s/100s/10min/60min
E:5-60s/10min/60min/6h F:0.25-2min/20min/2h/12h
G:0.5-4min/40min/4h/24h
|
| Coil Voltage |
AC24～240V 50/60Hz DC12V～110V |
AC24～240V DC12V～125V 50/60Hz |
AC24V～220V DC24V～110V 50/60Hz |
| Operating Temperture |
-30℃～+50℃ |
| Socket fitted with |
PYF08A PYF14A PYF08B PYF14B |
PF083A US-08 |
PF083A TP28X US-08 |
| Serivce Life |
Mechanical |
107 |
| Electeical |
105 |
| Terminal |
Outlet solder |
|
| Model |
AH2-N |
AH2-Y |
AH3-1,2,3 |
AH3-□ |
 |
| Contact |
Delay time DDDT Delay time SPDT |
On-delay instant SPDT |
| Operation |
Time-Limit Operation/Self-Resetting |
On-delay with instant charge-over |
| Time Range |
1s-10h |
1s-24h |
| Coil Voltage |
AC24V～240V DC24V～110V 50/60Hz |
| Operating Temperature |
-30℃～+50℃ |
| Socket fitted with |
PF083A PF083A-E US-08A |
| Service Life |
Machanical |
107 |
| Electrical |
105 |
| Terminal |
Outlet solder |
|

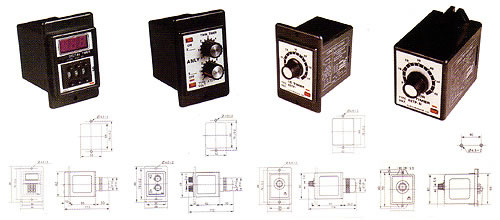

| Model |
ASY-3D |
ATDV-Y.N |
ASTP-Y |
ASTP-N |
 |
| Contact |
Delay time DDDT,Delay time SPDT |
| Operation |
Time-Limit Operation/Self-Resetting |
| Timerange |
9s-999h |
1s-24h |
1s-10h |
| Coil Voltage |
AC24V～240V DC24V～110V 50/60Hz |
| Operating Temperatuer |
-30℃～+50℃ |
| Socket fitted with |
PF083A PF083A-E US-08 |
| Service Life |
Machanical |
107 |
| Electrical |
105 |
| Terminal |
Outlet solder |
|
|
|
 |
|
